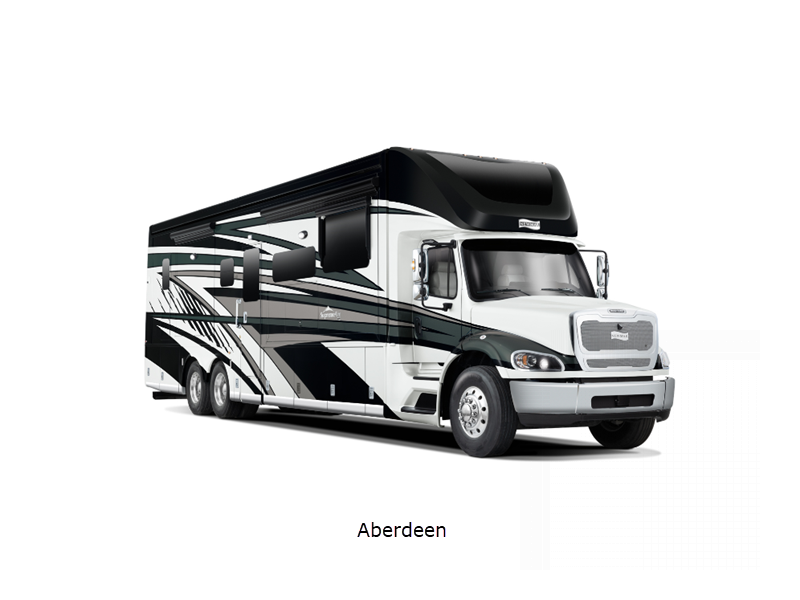

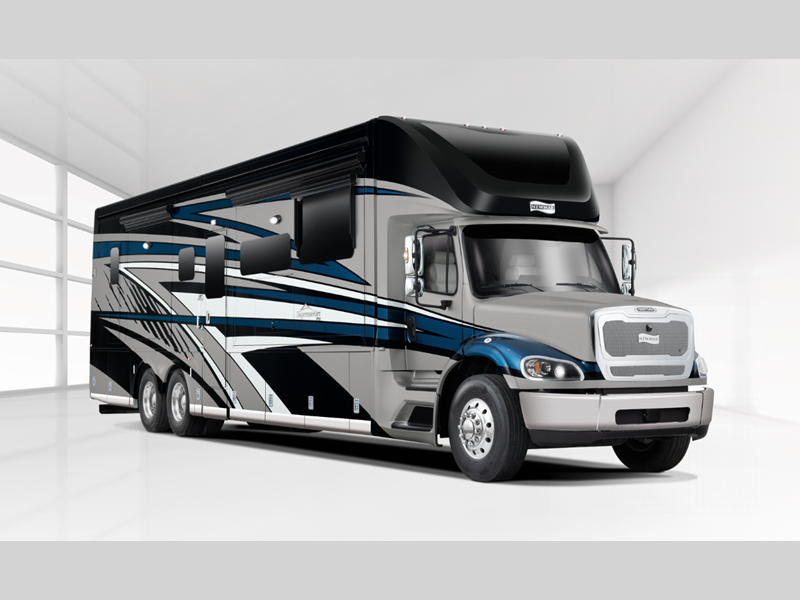

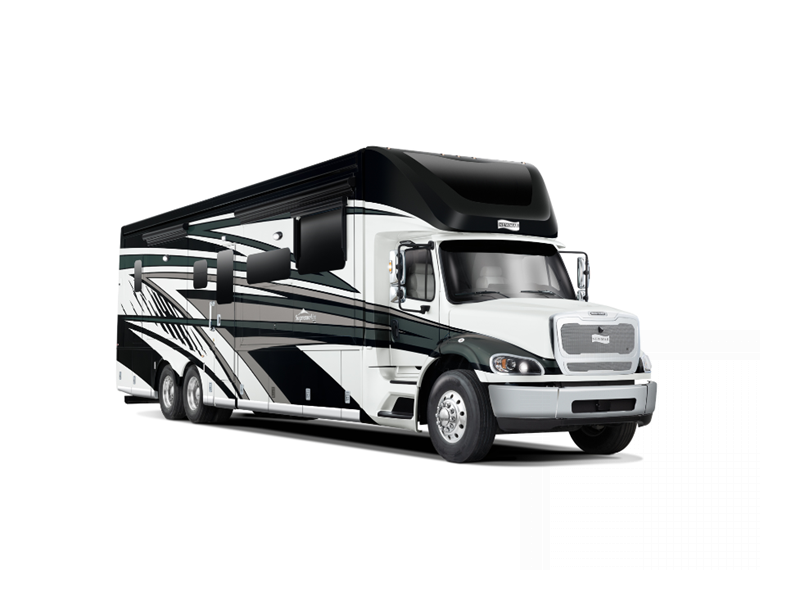

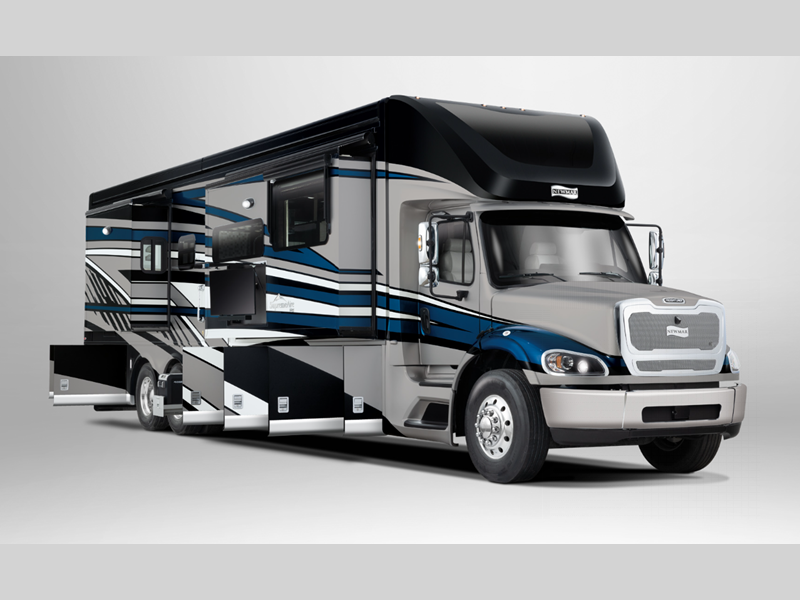

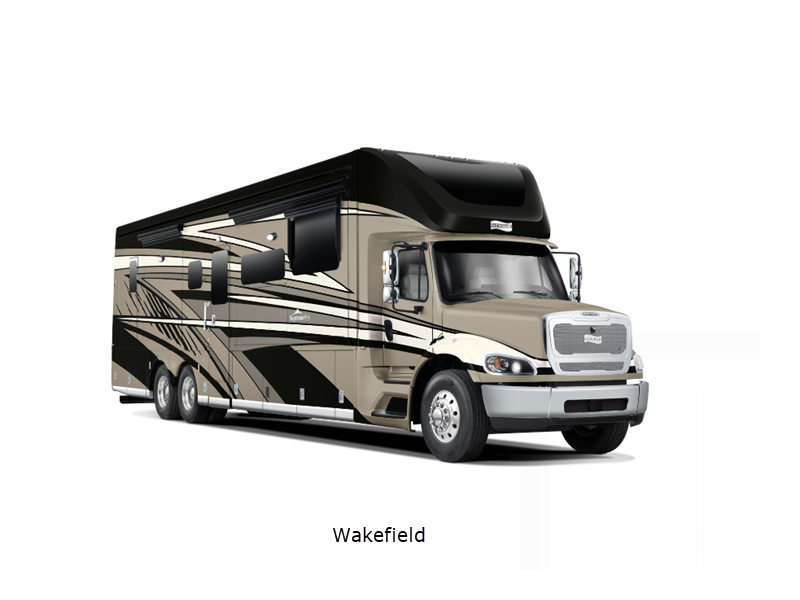

Newmar Supreme Aire Motor Home Super C - Diesel RVs For Sale

Previous
Next
1 of 26

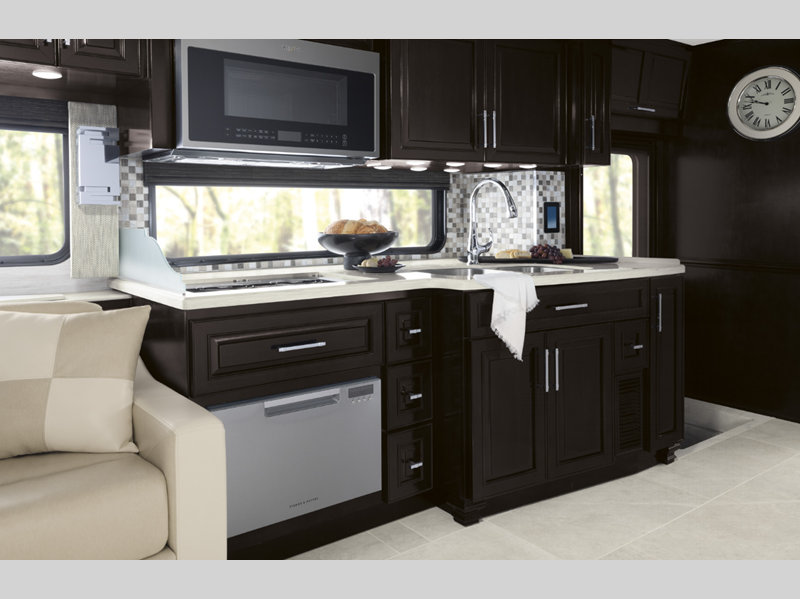

Elegant interiors, high-class furnishings, and extreme luxury are what create these decadent masterpieces from Newmar. Welcome to the new level of luxury with the Supreme Aire Super Class C diesel motorhome! Thoughtful design and durable construction both work together to provide you with the highest quality on the market.



No detail has been spared with these comfortable and upscale interiors. The porcelain tile floor, rear cathedral ceiling, stackable washer and dryer, chaise lounge, and plush pillowtop mattress are all a part of the fabulous features found on each Supreme Aire. You will also find excellent electrical features on each model, like a 12.5 KW Onan diesel generator, a 10 W solar panel to charge the chassis battery, and a Silverleaf multiplex wiring system. Other fun features that have been included in order to make your life easier are the central vacuum, the Samsung LED TV on a televator in the living area, and the WiFi Ranger Skypro Pack router.



Make a stunning and impressive addition to your family by adding the Newmar Supreme Aire Super Class C diesel motorhome to your driveway!

  • Supreme Aire 4573

    Supreme Aire 4573 Floorplan Image

    Newmar Supreme Aire Super Class C diesel motorhome 4573 highlights: Master Suite ... more about Supreme Aire 4573

    Specifications

    Sleeps 6
    Slides 3
    Length 44 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 4 in
    Int Height 6 ft 11 in
    Interior Color Artisan, Barnsley, Palisade, Windsor
    Exterior Color Artisan, Barnsley, Palisade, Windsor
    Hitch Weight 30000 lbs
    Gross Weight 58000 lbs
    Dry Weight 42900 lbs
    Cargo Weight 15100 lbs
    Fresh Water Capacity 150 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 50000 btu
    Generator 12.5 kW Onan
    Fuel Type Diesel
    Engine Detroit DD13-505
    Chassis Standard M-2 112
    Horsepower 505 hp
    Fuel Capacity 100 gals
    Wheelbase 309 in
    Available Beds King
    Torque 1850 ft-lb
    Refrigerator Type Whirlpool
    Refrigerator Size 19.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 40" x 32"
    Number of Awnings 2
    Axle Weight Front 18000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 20000 lbs
    Water Heater Type Continuous
    AC BTU 45000 btu
    TV Info LR 50" 4K LED TV, BR Samsung LED TV
    Awning Info Power
    Washer/Dryer Available Yes
    Gross Combined Weight 72000 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Supreme Aire 4575

    Supreme Aire 4575 Floorplan Image

    Take a Virtual Tour

    Newmar Supreme Aire Super Class C diesel motorhome 4575 highlights: Opposing ... more about Supreme Aire 4575

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 4
    Length 44 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 4 in
    Int Height 6 ft 11 in
    Interior Color Artisan, Barnsley, Palisade, Windsor
    Exterior Color Artisan, Barnsley, Palisade, Windsor
    Hitch Weight 30000 lbs
    Gross Weight 58000 lbs
    Dry Weight 46100 lbs
    Cargo Weight 11900 lbs
    Fresh Water Capacity 150 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 50000 btu
    Generator 12.5 KW Onan Diesel
    Fuel Type Diesel
    Engine Detroit DD13-505
    Chassis Standard M-2 112
    Horsepower 505 hp
    Fuel Capacity 100 gals
    Wheelbase 309 in
    Available Beds King
    Torque 1850 ft-lb
    Refrigerator Type Whirlpool
    Refrigerator Size 19.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 40" x 32"
    Number of Awnings 2
    Axle Weight Front 18000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 20000 lbs
    Water Heater Type Continuous
    AC BTU 45000 btu
    TV Info LR 50" 4K LED TV, BR Samsung LED TV
    Awning Info Power
    Washer/Dryer Available Yes
    Gross Combined Weight 72000 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Supreme Aire 4577

    Supreme Aire 4577 Floorplan Image

    Newmar Supreme Aire Super Class C diesel motorhome 4577 highlights: Bunkhouse ... more about Supreme Aire 4577

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 3
    Length 44 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 4 in
    Int Height 6 ft 11 in
    Interior Color Artisan, Barnsley, Palisade, Windsor
    Exterior Color Artisan, Barnsley, Palisade, Windsor
    Hitch Weight 30000 lbs
    Gross Weight 58000 lbs
    Dry Weight 46100 lbs
    Cargo Weight 11900 lbs
    Fresh Water Capacity 150 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 50000 btu
    Generator 12.5 KW Onan Diesel
    Fuel Type Diesel
    Engine Detroit DD13-505
    Chassis Standard M-2 112
    Horsepower 505 hp
    Fuel Capacity 100 gals
    Wheelbase 309 in
    Number Of Bunks 2
    Available Beds King
    Torque 1850 ft-lb
    Refrigerator Type Whirlpool
    Refrigerator Size 19.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 40" x 32"
    Number of Awnings 2
    Axle Weight Front 18000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 20000 lbs
    Water Heater Type Continuous
    AC BTU 45000 btu
    TV Info LR 50" 4K LED TV, BR Samsung LED TV
    Awning Info Power
    Washer/Dryer Available Yes
    Gross Combined Weight 72000 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

Supreme Aire Features:

Standard Features



Exterior Features

  • Exterior Masterpiece Finish™ Full Painted Graphics with Cut & Buff
  • Nano Shield Protection on Front Cap
  • Chrome Power Baggage Door Locks, Keyless Entry Door with Touch Pad & Door Bell
  • Convex Exterior Mirrors with Defrost and Remote Control
  • Automatic Triple Entrance Door Step-Hydraulic
  • Assist Handle at Entrance Door
  • Mud Flaps
  • Rear Protective Tow Guard with Stainless Steel Newmar Name Cutout
  • Undercoating
  • Hydraulic Leveling Jacks
  • Stainless Steel Exterior Trim Pieces and Entrance Door Kick Panel
  • Hammock Backer
  • Storage Bins in Pegboard Compartment

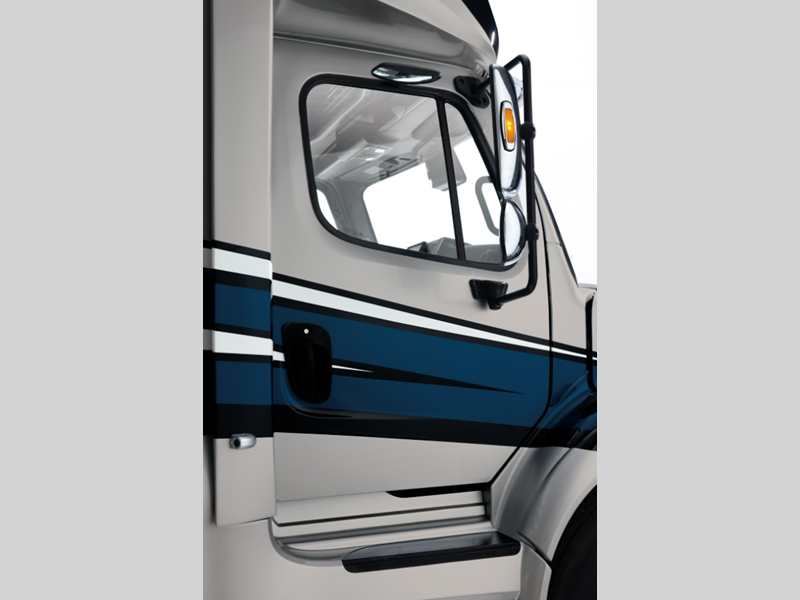

  • Power Lock Cockpit Doors

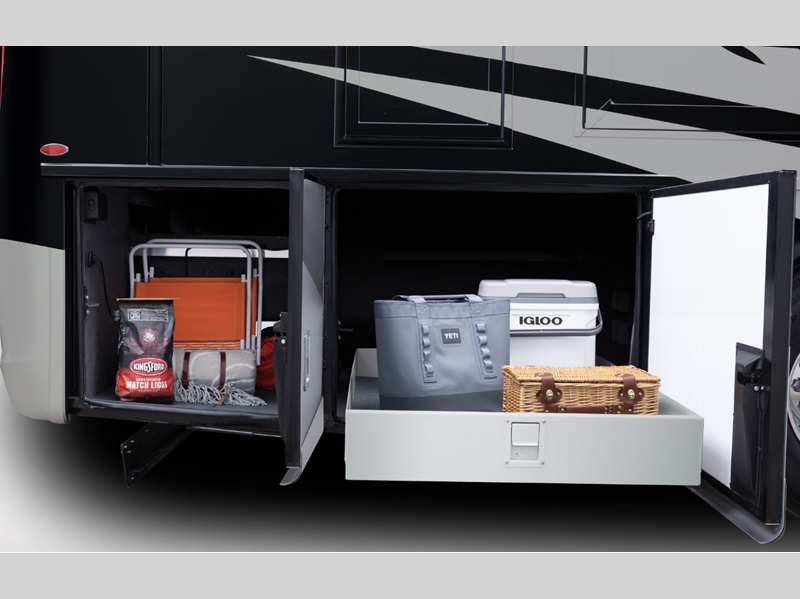

  • Rear Pass Through Storage Tray With Access from Either Side*
  • Rear Cap Storage

Exterior Options

  • Patio Hammock Package
  • Large Storage Tray with Access from One Side
  • Stainless Steel Trim Kit for Exterior Compartment Doors
  • Flag Pole Bracket

Construction Features

  • Fiberglass Roof and Intergrated Gutter Rail
  • Gelcoated Fiberglass Exterior Sidewalls, Front and Rear Caps
  • Aluminum-Frame Sidewalls & Roof Construction, 16" on Center
  • 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
  • Polar Pak R19 Batten Insulation on Roof
  • Automatic Mechanical Lock Arms on Non Hydraulic Slideout Rooms-Paddle Style
  • Egress Door with Ladder System*
  • HWH Flat Floor Slide

Chassis Features

  • 100 Gallon Fuel Capacity
  • 30K Rear Hitch for Towing-Includes Draw Bar with 2-5/16” Ball
  • Spartan K3 Tag Axle 500 Hp on 40’ Floorplans
  • Aluminum Wheels
  • Anti-Lock Braking System
  • Chassis Battery Disconnect
  • Electronic Stability Control
  • Cruise Control
  • On Guard Collision Mitigation Adaptive Cruise System
  • Standard M-2 112 Chassis Detroit DD13-505 Engine 309” +Tag Wheel Base
  • Tandem Rear Drive Axles
  • Tire Pressure Monitoring System

Windows, Awnings, and Vents Features

  • Frameless Double-Pane Tinted Safety-Glass Windows
  • Fantastic® Vent with Rain Sensor in Kitchen, Bathroom and Enclosed Stool Room
  • Hardwood Louvered Cover on Fantastic® Vent in Kitchen
  • Sky Window in Cockpit with Power Shade
  • Skylight Above Shower*
  • Girard Package-Two Nova Side Awnings, Slideout Covers & Power Window Awnings
  • Driver and Passenger Side Power Window

Windows, Awnings, and Vents Options

  • Kitchen Window

Air Conditioning and Heating Features

  • Three 15M Penguin™ Heat Pump Air Conditioners with Remote Control Thermostat on 45’
  • Hydronic Zone Diesel Heat with Continuous Hot Water
  • Dash Heater and Air Conditioner
  • Wall Mounted Sensors for Heating and Air Conditioning
  • Roof Air Conditioning Drainage System
  • Electric Radiant Heat Installed Below Main Floor Tile

Electrical Features

  • 12.5 Kw Onan® Diesel Generator
  • 50 Amp Electrical Service with Flexible Cord with Automatic Transfer Switch
  • Eight 6-Volt AGM House Batteries
  • Battery Disconnect Switch for House Battery
  • 10 Watt Solar Panel to Charge Chassis Battery
  • 3000 Watt True Sine Inverter
  • 2 USB Ports on Dashboard
  • Emergency Engine Start Switch
  • Integrated Block Heater
  • Energy Management System
  • Exterior Security Lights
  • Midship Side Turn Signals
  • LED Lights Recessed in Ceiling and Underneath Overhead Cabinets
  • Accent Lights in Feature Ceiling, Slideout Fascia Trim and Lambrequins
  • LED Lighting in Pull Out Pantry, Kitchen and Bathroom Base Cabinets
  • LED Lights in Exterior Storage Compartments on Automatic Switches
  • LED Lights Installed Under Door Side Slideouts
  • Lights in Wardrobes
  • Manually Operated Hold-To-Run Slideout Switch
  • Automatic Generator Start on Low Battery or Temperature Setting
  • Cable TV Connection
  • Interior Courtesy Lights
  • USB Charger at Dinette & Bedroom Night Stand
  • Power Rewind Wheel with 50’ Cord
  • Recessed Docking Lights
  • KIB Touch Screen Interior Light and Shade Controls
  • Secondary Multiple Touch Screen in Bedroom
  • Silverleaf® Multiplex Electrical Wiring System
  • Solar Prep with Six Gauge Wire from the Roof House Battery Compartment
  • Spare Fuses in Chassis and House Fuse Panels
  • 110 Volt Recept in Bed Overhead with Two Pass Through Ports
  • 110 Volt/USB Outlet at Head of Each Bunk*
  • Transfer Switch with Surge Protector
  • Reading Lights at Head of Bed-Dimmable with Adjustable Aim

Electrical Options

  • LED Strip Lighting Installed Under Off Door Side Slideouts
  • Four Flexible 100 Watt Solar Panels on Roof

Plumbing and Bath Features

  • Demand Water System
  • Sewage Holding-Tank Rinse
  • Dometic® 321 China Bowl Stool or Macerator Stool*
  • Aqua Miser Shower System

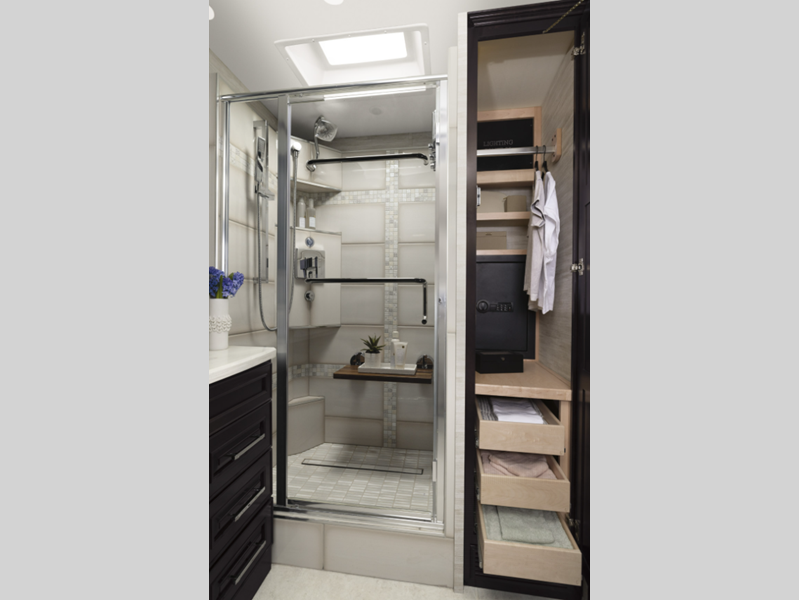

  • Tiled Shower Walls with Glass Door
  • Fold Down Shower Seat
  • Water Filter for Entire Unit
  • Exterior Shower
  • Auto Fill for Fresh Water Tank
  • Power Water Hose Reel
  • 12 Volt Dump Valves
  • 150 Gallon Fresh Water Tank

Plumbing and Bath Options

  • Assist Handle in Each Shower
  • RV Sanicon Turbo System

Cabinets and Furniture Features

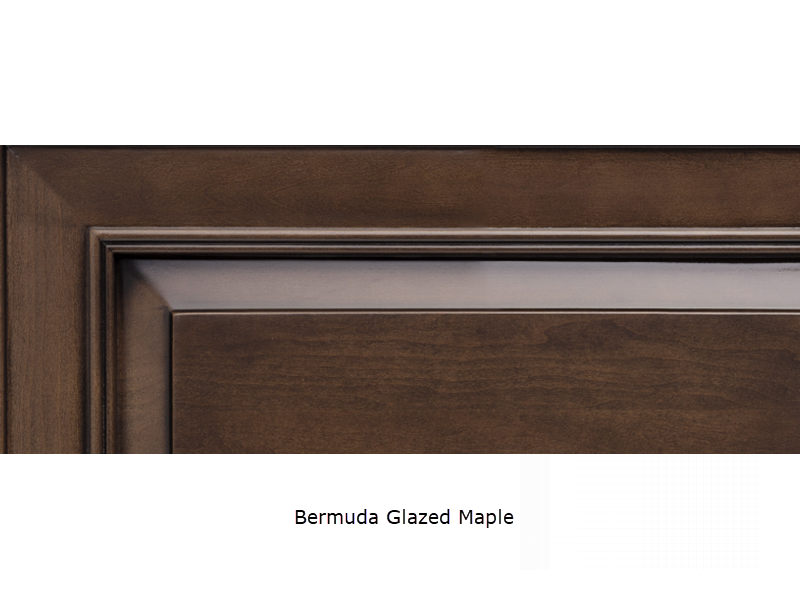

  • Bermuda Glazed Maple Hardwood Cabinets with Raised Panel Doors-Matte Finish
  • Air Ride Driver/Passenger Seats with Pneumatic Lumbar
  • Concealed Hinges on Cabinet Doors
  • Super Polished Solid Surface Countertop in Kitchen with Under Mounted Stainless Steel Sink and Sink Covers
  • Lifts on Bed Top
  • Super Polished Solid Surface Countertop in Bathroom and Bedroom

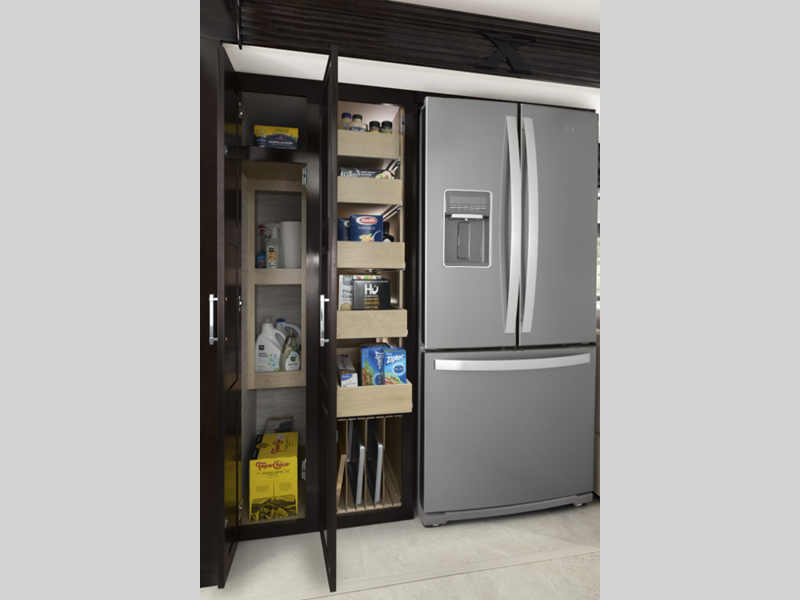

  • Pullout Pantry Shelves with Travel Latch*
  • Soft Close Side Hinge Cabinet Doors
  • Drawers with Dovetail Sides with Self Closing Full Extension Ball Bearing Guides
  • Villa Furniture
  • Plush Pillow Top Mattress
  • Wood Paneling in Bedroom Wardrobe*
  • Extended Rotation Concealed Hinge for Washer/Dryer Cabinet Door
  • Chaise Lounge-Off Door Side, Dormi Sofa-Door Side*
  • Mesh Cell Phone Holder at Each Bunk Bed*
  • Molded Silverware Divider Tray
  • 74" Chaise Lounge

Cabinets and Furniture Options

  • Carmel Glazed Cherry Hardwood Cabinets with Raised Panel Doors with Matte or High Gloss Finish
  • Bermuda Glazed Maple Hardwood Cabinets with Raised Panel Doors-High Gloss
  • Wicker Glazed Maple Cabinets with Raised Panel Doors-High Gloss or Matte Finish

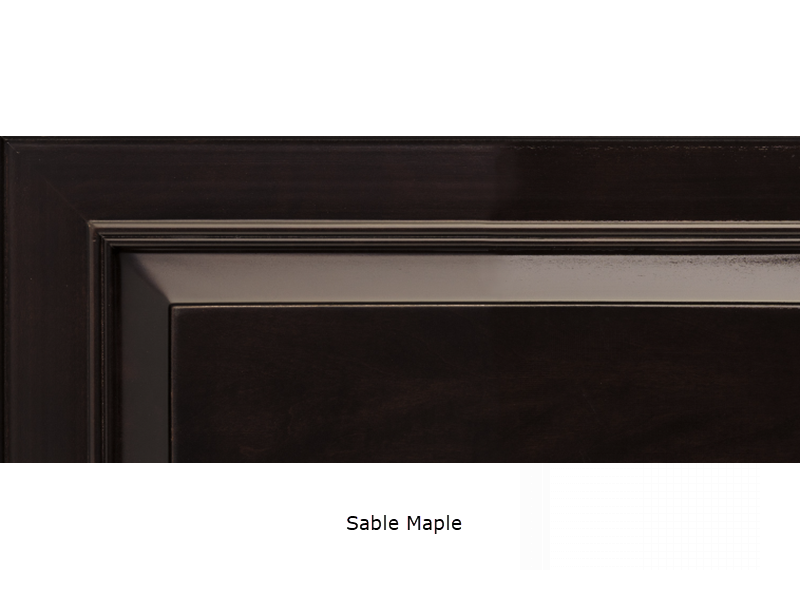

  • Sable Maple Hardwood Cabinets with Raised Panel Doors-High Gloss Or Matte Finish
  • Sleep Number R5 Radius Corner Air Mattress
  • Power Extenda Flex Dinette
  • Combination Desk/Dinette with Roll Away Table, Two Fixed/Two Folding Chairs
  • Combination Desk/Dinette with Buffet Table, Two Fixed/Two Folding Chairs
  • Power Incline Retracting Bed Base with Sleep Number R5 Air Mattress*
  • Euro Booth Dinette and Two Folding Chairs
  • Two Recliners with Lampstand and Reading Lights
  • 74” Hide-A-Bed with Two Ottomans and Jack Knife Sofa with Power Foot Rests
  • 84” Jack Knife Sofa
  • 100” Side Folding Hide-A-Bed with Two Ottomans
  • Chaise Lounge/Euro Booth Dinette Ensemble with Two Table Leaves & Two Folding Chairs
  • Fireplace with 50” 4K TV on Lift
  • Powered Theater Seating 74” with Reading Lights and Lighted Cup Holders

Appliances Features

  • Stainless Steel 30” Convection Microwave with Recessed Two Burner Cooktop
  • Air Horns
  • Whirlpool® 19.7 Refrigerator
  • Splendide Two-Piece Stacked Washer/Dryer
  • All Electric Flush Mount Induction Cooktop and Cover of Matching Countertop Material
  • Central Vacuum with Tool Kit

Appliances Options

  • Dishwasher in Drawer with Stainless Steel Front Located Below Cooktop

Interior Features

  • Porcelain Tile Floor in Kitchen, Bathroom, Bedroom and Living Areas
  • Auto Motion Power Shades and Lambrequins
  • Interior Assist Handle at Main Entry Door
  • Quilted Bedspread with Accent Pillow
  • Safe Located in Bedroom Wardrobe
  • Waste Basket in Kitchen Base Under Sink
  • Shoe Storage Shelves Recessed in Rear Cap of Wardrobe*
  • Cathedral Ceiling in Rear*
  • Flush Handles on Swinging Bath Doors
  • Hardwood Raised Panel Interior Passage Doors
  • Padded Vinyl Ceiling with Designer Feature Panels
  • Power Stepwell Cover

Audio and Video Features

  • Samsung LED TV and Sony® Blu-Ray Disc Player in Living and Bedroom Areas* (TV Sizes Vary Per Floorplan)
  • Samsung 50” 4K LED TV on Televator in Living Area*
  • Bose® 300 Sound Touch Sound Bar

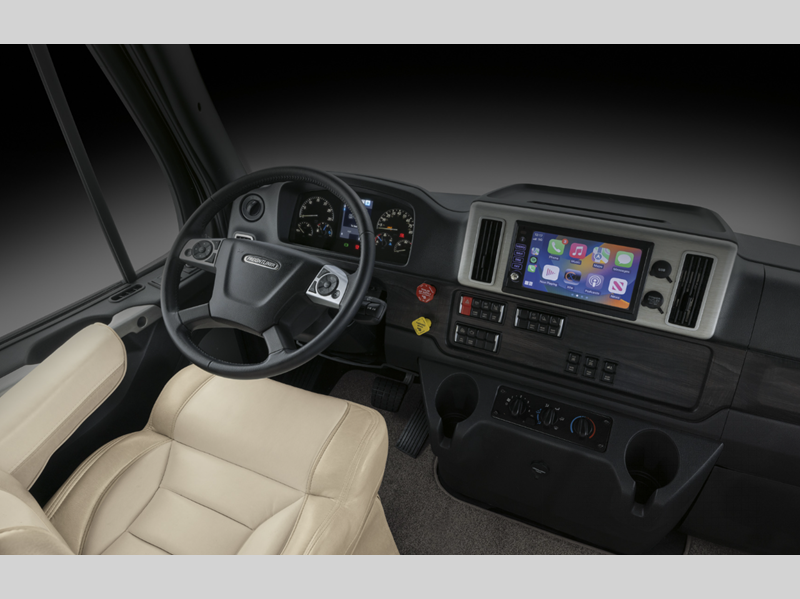

  • Xite Dash Radio, 7” Single Monitor with Rand McNally Navigation
  • Wingegard Rayzar Automatic Digital TV Antenna
  • Satellite Dish Prep on Roof
  • Two Bedroom Radio Speakers
  • TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
  • Cat 6 TV Cables
  • CB Prep with Antenna
  • Infra Red Repeater System to Operate Audio/Visual Components
  • WiFi Ranger Skypro Pack Router
  • 10 Bc Fire Extinguisher, Smoke, Propane and Carbon Monoxide Detectors
  • JBL Slimline Subwoofer
  • Remote Navigation Programming Via SD Card*
  • Xite Triview Rear View Camera

Audio and Video Options

  • Sirius Satellite Radio Capability with Antenna (Does not include monthly subscription)
  • Exterior Entertainment Center in Sidewall with Samsung 43” 4K LED TV with Soundbar

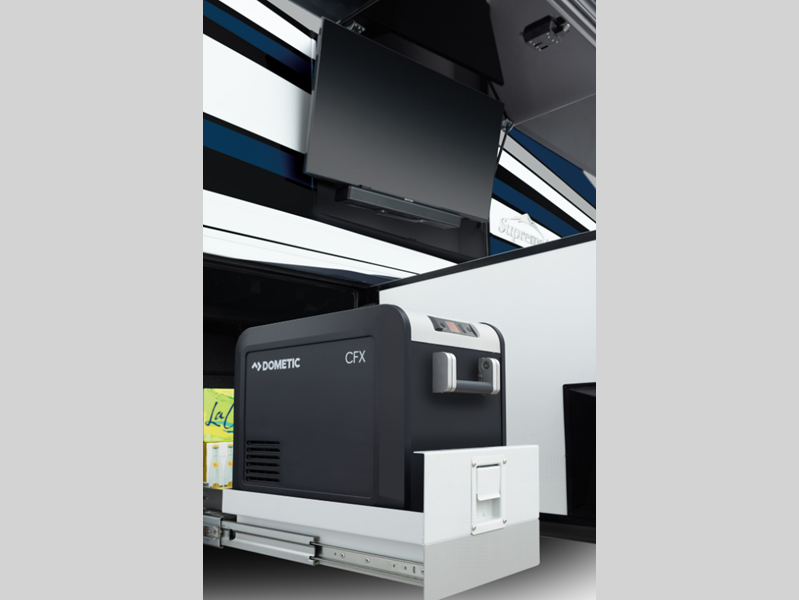

  • Exterior Entertainment Center in Storage Compartment with Samsung 43” 4K LED TV & Soundbar
  • Winegard Automatic In Motion Dome Satellite Dish
  • Winegard Automatic Open Face Satellite Dish
  • Winegard Automatic Open Face Satellite Dish & Winegard In Motion
  • Winegard Automatic Open Face SWM Satellite Dish
  • Winegard Cellular In Motion Wifi
  • Two-19” Skyworth TV/DVD Monitors at each Bunk*
  • Rear Camera (2) Prep for Use with Stacker Trailer
  • Wifi Ranger Skypro Lte Cellular Router
  • Universal Toll Module

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Manu-Facts:

Newmar Logo

Newmar is a company built around the Christian faith, specifically the beginning of the Mennonite faith in 1525 under the guidance of Ulrich Zwingli, and the founding of the Amish fellowship under Jacob Amman in 1693.



At Newmar, we believe that a motor coach is more than just a vehicle, it’s a passport to countless hours of fun and a lifelong memories taken from quality time spent with family and friends.



For over 50 years, we’ve applied our principles to the creation of motor coaches that have allowed people all over the world to live the RV lifestyle. And we’ll continue to so for countless generations to come. It’s why we take pride in every rivet, weld, and mechanical function.
